Angle Socket Wrenches 120003

ANGLE SOCKET WRENCHES 120003

Code No. 120003

6 point x 6 point with Hole. Manufactured from Chrome Vanadium Steel (31 Cr V3). Fully hardened to HRC 40-44.

Available in full polished Ni Cr plated finish and Head polished matt Cr plated finish

Size: 6mm to 36mm.

6 point x 12 point; 30 Increments

* For dimensions refer to chart of 120001

These Angle Socket Wrenches are hot upset forged, giving a unique grain pattern and upgraded performance.

Download Brochure [21 MB]

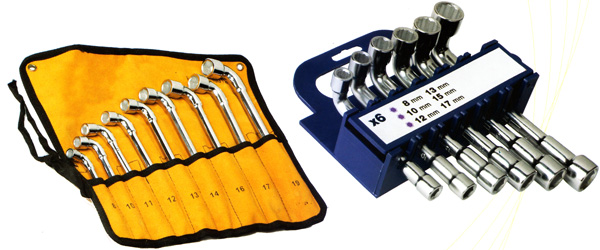

PACKING OPTIONS

Angle Socket Wrenches – 120003

Angle Socket Wrenches – 120003

CONVENIENT

  1. Deep profile grooves and the additional open end to the sockets provide an answer to most problems of accessibility, even with extra-long studs.
  2. The angle and through-hole of wrenches are designed to accommodate long threads or a bar for additional torque without affecting tool strength.

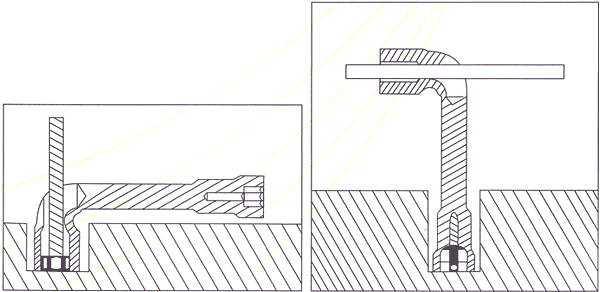

Angle Socket Wrenches Line Drawing
